Product Features:
DESCRIPTION
A. Provide enclosed variable frequency drives suitable for operation at the current, voltage, and horsepower indicated on the schedule. Conform to requirements of NEMA ICS 3.1.
2.03 RATINGS
A. VFD must have the minimum range of horsepower ratings: 0.75 to 175 HP at 240 VAC; 0.75 to 1000 HP at 480 VAC; 1 to 250 HP at 600 VAC.
B. VFD must have Heavy Duty and Normal Duty ratings and software switch to optimize the VFD size to the application.
C. VFD shall have a built-in Dynamic Braking Resistor through a minimum of 50 HP at 240, 480, and 600 VAC voltage classes.
D. VFD must operate, without fault or failure, when voltage varies plus 10% or minus 15% from rating, and frequency varies plus or minus 5% from rating.
E. VFD shall be __________ volts, _______ Hz, 3 Phase.
F. Displacement Power Factor: 0.98 over entire range of operating speed and load.
G. Service factor: 1.0
H. Operating Ambient Temperature: NEMA 1 (IP20): -10°C to 40°C (14°F to 104°F); Open Chassis: -10°C to 50°C (14°F to 122°F).
I. Ambient storage temperature: -20°C to 60°C (-4°F to 140°F).
J. Humidity: 0% to 95%, non-condensing.
K. Altitude: Up to 3,300 feet (1000m), higher altitudes achieved by derating.
L. Vibration: 9.81m/s2 (1 G) from10 to 20 Hz; 2.0 m/s2 (0.2 G) from 20 Hz to 55 Hz.
M. Minimum Efficiency: 96% at half speed; 98% at full speed.
N. Starting Torque: 200% starting torque shall be available from 0.3 Hz to 60 Hz.
O. Overload capability: 150% of rated FLA (Full Load Amps) for 60 seconds for Heavy Duty applications; 120% of rated FLA for 60 seconds for Normal Duty applications; 200% of rated FLA peak.
P. Controlled speed range: 200:1.
Q. Total Harmonic Distortion (THD) compliance: Given the information provided by the customer’s electric power single line diagram and distribution transformer data, the VFD manufacturer shall carry out an analysis of the system. The analysis reviews the potential for the proposed equipment, and any existing equipment, to meet IEEE 519 (tables 10.2 and 10.3) recommendations at the Point of Common Coupling (PCC). The result of the analysis shall determine if additional power quality improvement measures should be included in the proposal to meet the THD recommendations of IEEE 519. The PCC shall be at the primary side of the main distribution transformer.
R. VFDs must be suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes.
| NO. | Model NO. | Motor Power(kw) | Package Dimensions(H*W*D mm) | Gross weight(kg) |
| 1 | AB4A0002 | 0.4 | 410*240*29 | 5 |
| 2 | AB4A0004 | 0.75 | 5 | |
| 3 | AB4A0005 | 1.5 | ||
| 4 | AB4A0007 | 2.2 | ||
| 5 | AB4A0009 | 3 | ||
| 6 | AB4A0011 | 3.7 | ||
| 7 | AB4A0018 | 5.5 | 6 | |

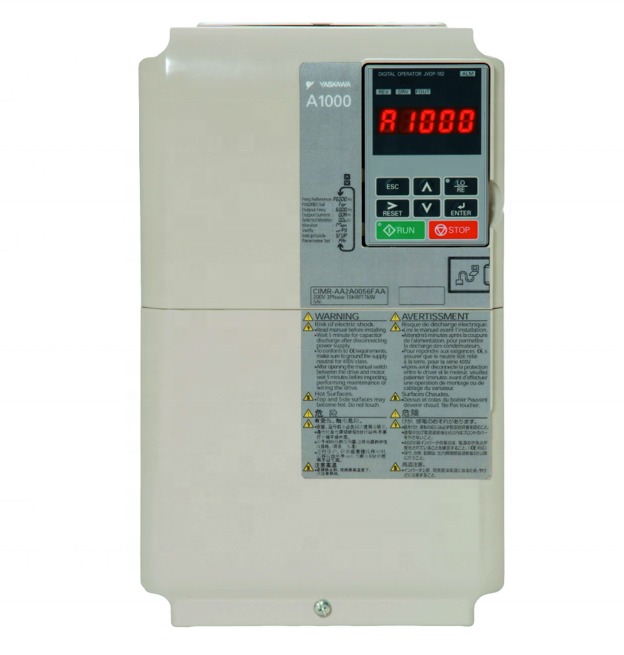

| 8 | AB4A0023 | 7.5 | 6 | |
| 9 | AB4A0031 | 11 | 450*290*300 | 7 |
| 10 | AB4A0038 | 15 | 8 | |
| 11 | AB4A0044 | 18.5 | 550*350*350 | 11 |
| 12 | AB4A0058 | 22 | 560*460*360 | 27 |
| 13 | AB4A0072 | 30 | 31 | |
| 14 | AB4A0088 | 37 | 650*450*530 | 56 |
| 15 | AB4A0103 | 45 | ||
| 16 | AB4A0139 | 55 | 61 | |
| 17 | AB4A0165 | 75 | 62 | |
| 18 | AB4A0208 | 90 | 810*580*580 | 94 |
| 19 | AB4A0250 | 110 | 1100*800*580 | 111 |
| 20 | AB4A0296 | 132 | 118 | |
| 21 | AB4A0362 | 160 | 107 | |
| 22 | AB4A0414 | 185 | 1070*740*710 | 185 |
| 23 | AB4A0515 | 220 | 1260*930*710 | 275 |
| 24 | AB4A0675 | 315 | 280 |
Except Yaskawa inverters , we also have FUJI inverter ,Siemens inverter, Mistubishi inverters, ABB inverters, Allen Bradley Inverters etc.
Siemens:
0.37KW 6SL3210-5BE13-7UV0
0.75 KW 6SL3210-5BE17-5UV0
1.1 KW 6SL3210-5BE21-1UV0
1.5KW 6SL3210-5BE21-5UV0
2.2KW 6SL3210-5BE22-2UV0
3 KW 6SL3210-5BE23-0UV0
4 KW 6SL3210-5BE24-0UV0
5.5 KW 6SL3210-5BE25-5UV0
7.5KW 6SL3210-5BE27-5UV0
11 KW 6SL3210-5BE31-1UV0
15KW 6SL3210-5BE31-5UV0 etc.
Fuji:
FRENIC-LIFT SPECIAL FOR ELEVATORS (LM1Sseries) :
3PHASE 50Hz/60Hz
FRN5.5LM1S-4C 5.5kw
FRN7.5LM1S-4C 7.5kw
FRN11LM1S-4C 11 kw
FRN15LM1S-4C 15kw
FRN18.5LM1S-4C 18.5kw
FRN22LM1S-4C 22kw
FRN30LM1S-4C 30kw
FRN37LM1S-4C 37kw
FRN45LM1S-4C 45kw etc.
Mitsubishi:
FR-E740-0.4K 0.4KW
FR-E740-0.75K 0.75KW
FR-E740-1.5K 1.5KW
FR-E740-2.2K 2.2KW
FR-E740-3.7K 3.7KW
FR-E740-5.5K 5.5KW
FR-E740-7.5K 7.5KW
FR-E740-11K 11KW
FR-E740-15K 15KW
FR-D740-0.4K 0.4KW
FR-D740-0.75K 0.75KW
FR-D740-1.5K 1.5KW
FR-D740-2.2K 2.2KW
FR-D740-3.7K 3.7KW
FR-D740-5.5K 5.5KW etc.
ABB:
ACS550-01-03A3-4 1.1 KW
ACS550-01-04A1-4 1.5KW
ACS550-01-05A4-4 2.2KW
ACS550-01-06A9-4 3KW
ACS550-01-08A8-4 4KW
ACS550-01-012A-4 5.5KW
ACS550-01-015A-4 7.5KW
ACS550-01-023A-4 11KW
ACS550-01-031A-4 15KW
ACS550-01-038A-4 18.5KW
ACS550-01-045A-4 22KW
ACS550-01-059A-4 30KW
ACS550-01-072A-4 37KW
ACS550-01-087A-4 45KW
ACS550-01-125A-4 55KW
ACS550-01-157A-4 75KW
ACS550-01-180A-4 90KW
ACS550-01-195A-4 110KW
ACS550-01-195A-4 132KW
ACS550-01-290A-4 160KW etc.
Allen Bradley:
22B-D1P4N104 0.4kw
22B-D2P3N104 0.75kw
22B-D4P0N104 1.5kw
22B-D6P0N104 2.2kw
22B-D010N104 4kw
22B-D012N104 5.5kw
22B-D017N104 7.5kw
22B-D024N104 11kw etc.
If any needs,pls feel free to contact me.
Other Good Product Options for Our Valuable Customers As Below
V2 Series VFD V5 Series VFD SPD660 Series Solar Pump Inverter
OEM Service is available
After-sales responding within 24 hours
One to one pre-sales consulting services
Factory located in Shanghai, with high-tech professional engineer teams
Technician could be assigned to go abroad to carry out site commissioning and technical training
| 담당자 : | Giselle Chen |
|---|
